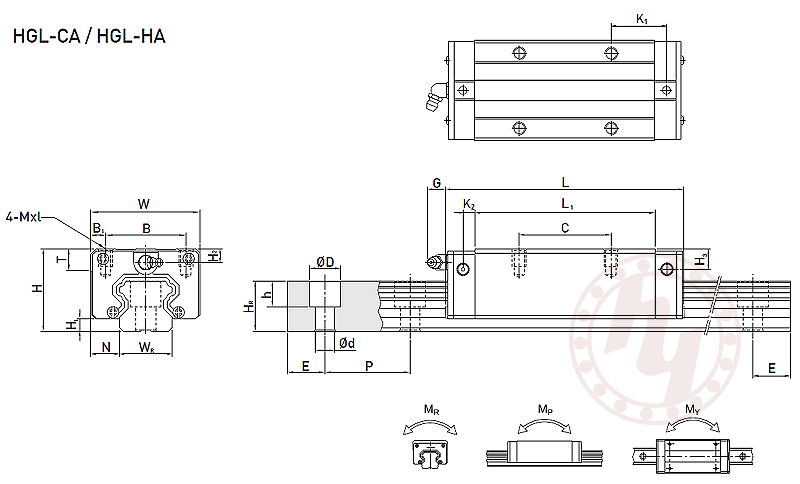

| 組件尺寸 | H | 60 | mm |
| H1 | 9.5 | mm | |
| N | 20.5 | mm | |
| 滑塊尺寸 | W | 86 | mm |
| B | 60 | mm | |
| B1 | 13 | mm | |
| C | 80 | mm | |
| L1 | 128.8 | mm | |
| L | 171.2 | mm | |
| K1 | 28.9 | mm | |
| K2 | 10 | mm | |
| G | 12.9 | mm | |
| Mxl | M10x17 | mm | |
| T | 16 | mm | |
| H2 | 8.5 | mm | |
| H3 | 20.5 | mm | |
| 導軌尺寸 | WR | 45 | mm |
| HR | 38 | mm | |
| D | 20 | mm | |
| h | 17 | mm | |
| d | 14 | mm | |
| P | 105 | mm | |
| E | 22.5 | mm | |
| 導軌的固定螺栓尺寸 | 導軌的固定螺栓尺寸 | M12x35 | mm |
| 基本額定負荷 | 動負荷C | 94.54 | kN |
| 靜負荷C0 | 136.46 | kN | |
| 容許靜力矩 | MR | 2.63 | kN-m |
| Mp | 2.68 | kN-m | |
| My | 2.68 | kN-m | |
| 重量 | 滑塊 | 2.75 | kg |
| 導軌 | 10.41 | kg/m | |
 | |||
